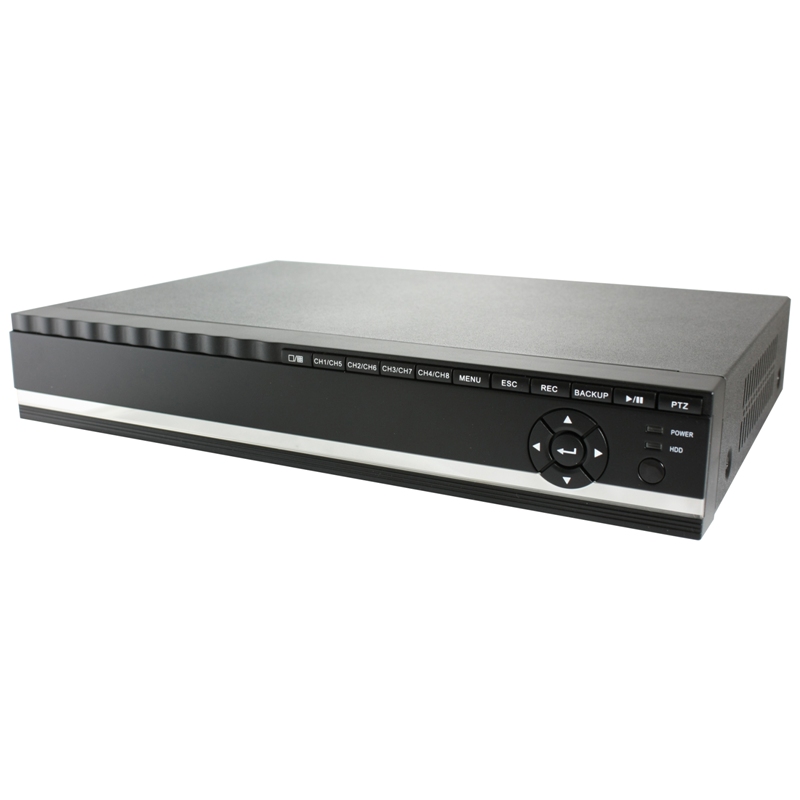

DVRL0805V-8CH PENTAPLEX H.264 STANDALONE DVR With 500 HDD
DVRL0805V
PENTAPLEX H.264 STANDALONE DVR - 8 CHANNEL, 240fps/ 240fps, Motion/Sensor detection, 4 Alarm In/ 1 Out, Audio 8 In/ 1 Out, BNC out, VGA output, CIF 352x240 resolution
Including 500 HDD
- Overview
- Specification
- Features
- Download
- High quality real-time preview, recording and playback
- Remote View and control via IE
- H.264 recording format
Specification Not Found !
|
Video Input Channel
|
8 BNC
|
|
Video Output Channel
|
1-TV OUT BNC,1 VGA Output
|
|
Video Display
|
Single, Split(1/4), Split(1/9)
|
|
Search Mode
|
Time
|
|
Audio In
|
8
|
|
Audio Out
|
1
|
|
Display Resolution per Channel
|
720X480
|
|
Video Display
|
Real Time
|
|
Resolution Recording
|
CIF, Half D1, D1
|
|
Recording Modes
|
Continuous, Scheduled, Sensor/ Motion trigger
|
|
Recording Compression
|
H.264
|
|
Recording Frame Rate
|
Up to 30 FPS Per Channel
|
|
Recording Quality
|
Low, Normal, Good
|
|
Internet Transmitting/ Compression
|
H.264
|
|
Storage
|
Support One SATA Harddrive up to 2T (500GB included)
|
|
Backup Device
|
USB drive (not included)
|
|
Alarm Input
|
8
|
|
Alarm Output
|
1
|
|
Serial Connectors
|
2 USB 2.0
|
|
Network Connection
|
10/100 Ethernet(RJ-45)
|
|
Network Protocol
|
TCP/IP, Static IP, DHCP, DDNS
|
|
Network Remote
|
Remote Monitoring, recording via IE browser
|
|
Playback
|
Via Client Player
|
|
Supply Voltage
|
Output: DC 12V/ Input: AC100~240V
|
|
Dimension (W x L x H)
|
12"x 9"x 2"
|
