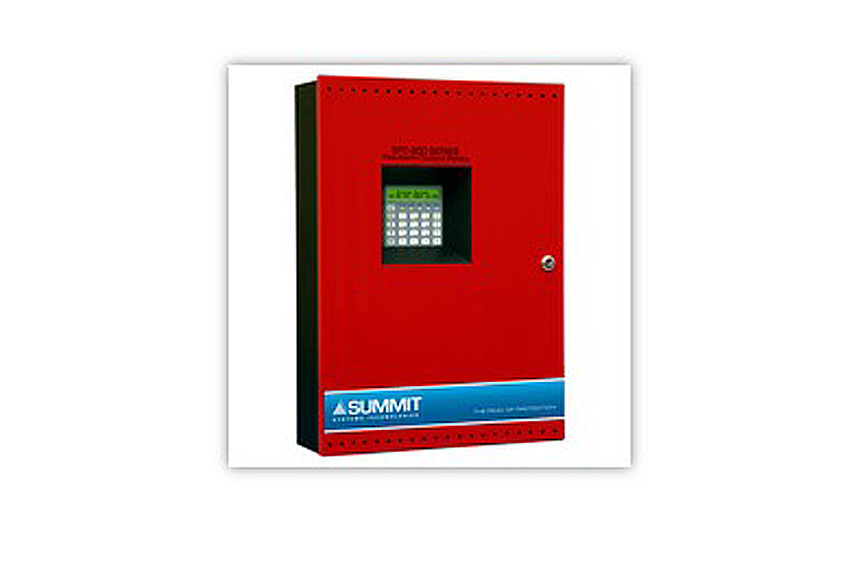

The SFC-200-6DR and SFC-200-6DDR are equipped with six Class "B" (Style "B") initiating circuits and two Class "B" (Style "Y") indicating circuits rated @ 1.7 Amps maximum. (Total of 5 Amps) The SFC-200-6DDR is equipped with a built-in UDACT/Digital Communicator. One SICA-206 Six Initiating Circuit Class "A" Converter Modules may be used for Class "A" (Style "D") wiring of the initiating circuits. One SOCA-202 Two Indicating Circuit Class "A" Converter Module may be used for Class "A" (Style "Z") wiring of the indicating circuits. The cabinet will support up to 12 AH batteries. The panels can be semi-flush mounted with the optional SFC-200TRB trim ring. Note: Not ULC listed.
Listed to UL 864, 9th edition
• Available in six, eight and twelve zone models
• Available in LED and LCD Display configurations
• LCD Display versions are equipped with a 2 line
by 20 character back-lit LCD display and numerical
keypad
• Integrated UDACT/Digital Communicator on select
models
• Front panel and PC programmable
• LED Display versions are front panel (using CFG-300
configuration tool) and PC programmable
• Remote upload/download capabilities
• Base panel is equipped with Class “B” (Style “B”)
initiating circuits which may be configured as Class
“A” (Style “D”) using a Class “A” converter module
• Initiating circuits may be configured as Alarm, Verified
Alarm, Water flow Alarm, Sprinkler Alarm, Latching or
Non-Latching Supervisory, Monitor and Trouble-Only
• Base panel is equipped with Class “B” (Style “Y”)
indicating circuits which may be configured as Class
“A” (Style “Z”) using a Class “A” signal converter
module
• Audible signals may be configured for Steady,
Temporal Code, California Code and March Time
• Indicating Circuits may be configured as Silence able
or Non-Silence able for both signals and strobes
• Built-in sync protocols for the following strobe
manufacturers: Mircom, Amseco, System Sensor,
Gentex, Faraday and Wheelock
• Relay contacts for Common Alarm, Auxiliary/Alarm
(Disconnect able), Common Supervisory and
Common Trouble
• Configurable Signal Silence Inhibit, Auto Signal
Silence and One-Man Walk Test
• Subsequent Alarm, Supervisory, and Trouble
operation
• RS-485 Interface for Remote LED Annunciators, LCD
