The SFC-500 Series Intelligent Fire Alarm Control Panels are intelligent panels that support 60, 126 or 378 addressable points. The SFC-500 Series is ideal for both new and retrofit applications. Designed for small to medium commercial, institutional and industrial occupancies, these panels are powerful enough to meet today's installation demands. The SFC-500 Series is configurable by the keypad for onsite programming or by a PC for both onsite and remote programming. Easy to install and simple to operate and configure, the SFC-500 Series enables the installer to configure the system to meet their specific requirements.

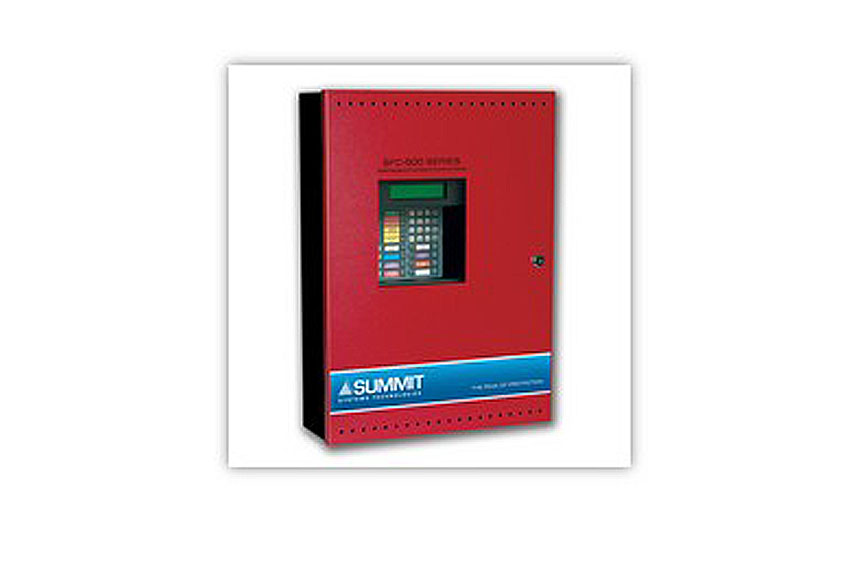

The SFC-500-60-DR comes complete with a red door, black enclosure, durable CAT-30 lock and key and space to mount up to 12 AH batteries. An optional trim ring is available for semi-flush mounting

• Listed to UL 864, 9th edition

• Single Addressable SLC Loop that supports 60, 126 or 378 addressable points
  Points can be any combination of Addressable Sensors or Modules
  Supports Ionization Sensors, Photoelectric Sensors, Variable Heat Sensors and Multi–Sensor (Heat/Photo)
  Equipped with 2 line by 20 character back-lit LCD display and numerical keypad

• Integrated UDACT/Digital Communicator
  Digital Communicator can be configured for DACT or UDACT mode of operation

• Configurable via the front panel, PC Configurator, or remote dial up through the built-in modem

• Sensors can be configured as Alarm, Verified Alarm, Latching or Non-Latching Supervisory, Monitor and Trouble-Only
  Modules can be configured as Alarm, Latching Supervisory, Non-Latching Supervisory, Water Flow, Monitor, Trouble, Fire Drill Switch, Signal Silence Switch, Aux Disconnect Switch and Buzzer Silence Switch

• Base panel is equipped with Four Class "B" (Style "B") indicating circuits which may be configured as Class "A" (Style "Z") using a Class "A" signal converter module

• Indicating Circuits may be configured as Silenceable or Non-Silenceable for both signals and strobes

• Built-in sync protocols for the following strobe manufacturers: Mircom, Amseco, System Sensor, Gentex, Faraday and Wheelock

• Relay contacts for Common Alarm, Auxiliary/Alarm (Disconnectable), Common Supervisory and Common Trouble

• Configurable Signal Silence Inhibit, Auto Signal Silence and One-Man Walk Test

• Subsequent Alarm, Supervisory, and Trouble operation

• RS-485 Interface for Remote LED and LCD Annunciators,

• Interface for a Remote Trouble Indicator (SRTI-200)

• Two event history logs comprised of a 200 event alarm log for alarm related events and a 200 event general log for all other events

• 5.5 Amp Power Supply

• Optional modules for additional internal relay circuits and City Tie/Polarity Reversal

• Optional trim rings for semi-flush mounting
